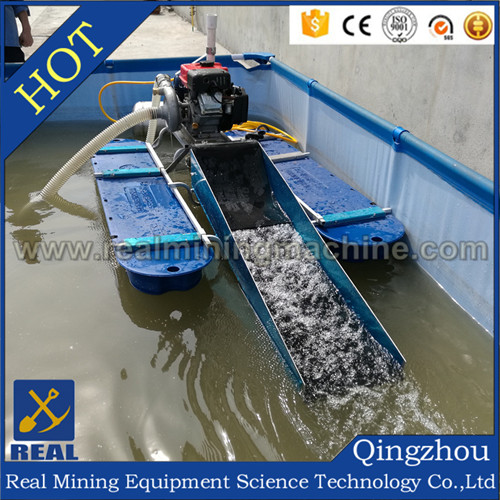

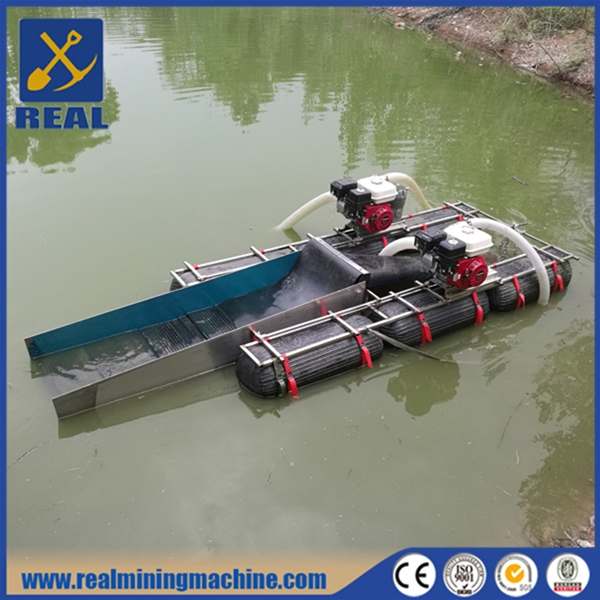

Gold dredge 2.5 inch


Mini gold derdge

(2.5 inch)

1.Introduction of Gold Dredging Mining Boat

This dredge is a professional portable gold mining machine which is specially designed according to the complex riverbed conditions. Portable gold mining dredge is equipped with a gold sluice with gold carpet or grass for high recovery rate, powered by a famous gasoline engine with pump, float framework is made up of stainless steel structure, the floating body is made of high strength and light weight plastic. There are advantages that small in size, easy to operate, maintain, transport and assemble, it is most ideal equipment for personal gold mining in mini river channel.

2.Features of Gold Dredging Mining Boat

1). Portable, small in size:easy to operate, maintain, transport and assemble, it is most ideal

equipment for personal gold mining in mini river channel.

2). Hot sale all over the world: Had been exported to more than 15 countries, such as Ghana,

Philippines, Vienam, Russia, North Korea, Indonesia, Gabon, America and so on.

3). High efficiency:It is equipped with a gold chute with gold carpet for high recovery rate.

4). Quick return, high profits:It is highly efficient with low cost, a good gold mining machine.

5). Standard quality:  Float framework is made up of stainless steel structure, the floating body is made of high strength and light weight plastic, which means the main body of the machine is stong, durable and low failure rate.

6).Customization design: According to the different geological condition, capacity requirement

planning and the customers budget, provid the most ideal product for investor.

3.Working Principle of Gold Dredging Mining Boat

During the portable gold mining equipment working process, on the water, the sand and mud can be suck up from the river bottom through the mud pump, and then be delivered into the sluice box, after the separation of the sorting sieve, large stones was flowed back to the river, the sand mud with gold grains was stuck in the gold carpet and grass.

Size

Model

Pump/Power

Air compressor

Suction nozzle

Suction hose / depth

Net weight

Tare weight

2.5"

2516PJ

DW160 /GT400

none

PJ65

2.5” X 6m

59KG

62kg

2.5"

2516CPJ

DW160 /GT400

T-80

PJ65

2.5” X 6m

70KG

75kg
